DESCRIPTION:
SK : The
shaft lid protects your electrical and mechanical installations on the
structure in a safe and decorative way. In the event of a possible fire, the
installation shafts allow the fire to move quickly to the upper zones by making
a chimney effect, preventing the use of the installation shaft cover and the
fires that occur in the neighborhood to reach the installation sites and fires
that may occur in the installation shafts.
MATERIAL:
Fixed
outer frame Aluminum and moving inner frame are manufactured from galvanized
material resistant to bending and buckling.
APPLICATION:
SK Series control flaps, the Fire Resistant
Shaft Cover provide all the functionality, as well as keeping the fire area at
minimum level for 90 minutes and allowing people to escape to safe zones. Smoke
and heat are two key elements that cause damage to the fire, and the Shaft
Cover does not allow exposure to these elements.
FINISHING:
·
Standard finishing is natural
anodized. Electrostatic powder coating is optional.
·
Standard colours are RAL 9010 and
RAL 9016 . Other colours are available with enamel paint.
INSTALLATION:
·
System with screws is standard.
·
System with clips and plate
spring is used if no hole is requested on the frame.
ACCESSORIES:
·
The cover can be produced with
insulated or uninsulated
·
Open-close mechanism, automatic
touch-operated and Hinged
STANDARD SIZES (mm) :
W : 400-450-500-550-600-650-700-750-800 mm
H :
400-450-500-550-600-650-700-750-800-900-1000-1100-1200-1300-1400 mm
* Any combination of these
sizes

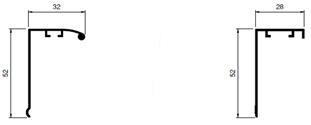

FRAME TYPES:
DRAWINGS:

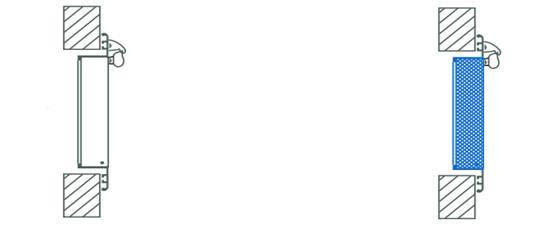

Hinged uninsulated Control
Cover Hinged
insulated Control Cover
MOUNTING
DETAILS:

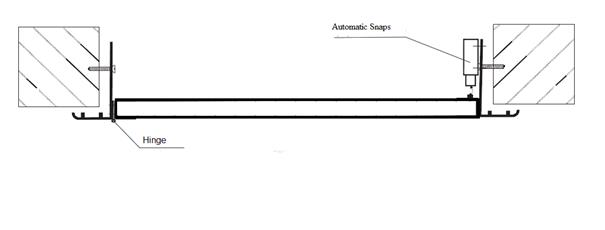

1- Screw Mounting Details

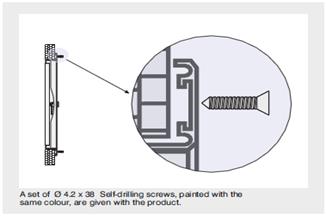

2 – Screw Mounting Details with hide

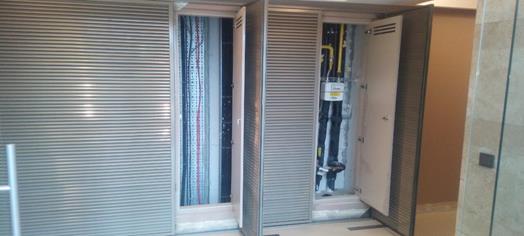

APPLICATION EXAMPLE:
LOCK TYPES
ORDER
CODE:
|
SK |
O |
45 |
00 |
RAL9010 |
VD |
W
400X400 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
W:
Neck Size |
|||||
|
|
|
C:
Frame Size |
|||||
|
O: Touch operation |
00:
without Mounting |
||||||
|
M:
Hinged |
VD:
Screw Mounting |
||||||
|
A: Keyed |
VD-H: Screw Mounting with Hide |
||||||
|
22mm Frame = 22mm |
|||||||
|
32mm Frame = 32mm 45mm Frame = 45mm |
|||||||
|
00: Uninsulated |
00:
without coating |
||||||
|
iz: insulated |
EL:
Anodic Aluminium |
||||||
|
RAL----:
Powder Coated RAL |
|||||||
