DESCRIPTION:
TMK
Drywall control covers; Plasterboard, Boardex, Guardex, Aqua Panel Vb.
Structural materials
The ceiling or the wall that is to be constructed, the areas to be intervened
(the
Wiring harnesses, control panels, etc.).

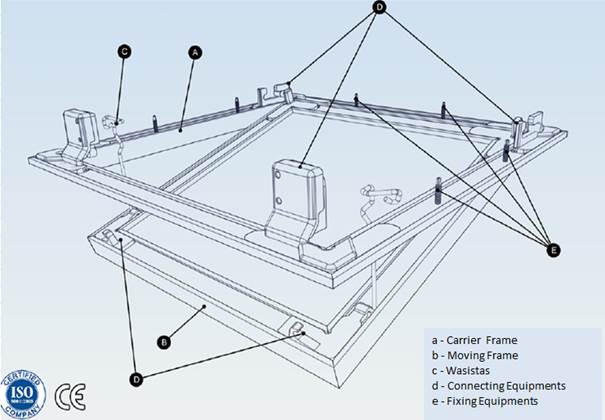

MATERIAL:
The fixed
outer frame and the moving inner frame are made of 1.2mm bending and sprung
resistant aluminum material. Equipment’s and Safety spring Micron Zinc Coating.
There is standard plasterboard inside the inner frame.
APPLICATION:
TMK
Drywall control covers; Which can be opened with a small touch and onto which
paint, ceramics or similar materials can be applied. It is a construction
element that houses movement and safety elements (Hidden Hinge, Switch, Safety
Waste, etc.).
(12.5 mm, 15 mm and 25 mm) Thickness; It is suitable for use with Plasterboard,
Boardex, Guardex, Ferfore Plasterboard, Aquapanel.
FINISHING:
·
Standard colours are RAL 9010 and
RAL 9016 for frame.
INSTALLATION:
The outer frame is applied as a standard by screwing on the gypsum board.
ACCESSORIES:
·
The access door opens and closes on a push-push
action. It locks on the first push and releases with the second push.
·
Spring hinged can also be made.
Cover – Access Panel Types:
Switch Hinged Touch-Operated Intervention
Cover Spring and touch Manhole Cover
(Vertically
and Horizantally Opening)
(Vertically
and Horizantally Opening)
Zero Consturuction Touch-Operated Intervention Covers
(Vertically, Laterally and Horizantally Opening)
Universal Covers Top Mounted Intervention Covers
EQUIPMENTS:
STANDARD SIZES (mm) :
W : 300-350-400-450-500-550-600 mm
H :
300-350-400-450-500-550-600 mm
* Any combination of these
sizes
MOUNTING DETAILS:

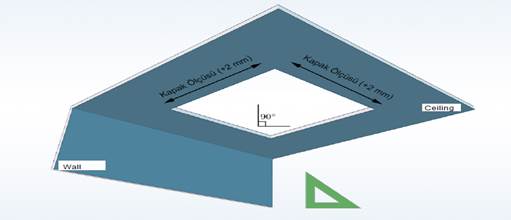

1 - Cutting drywall
2 - Frame Assembly

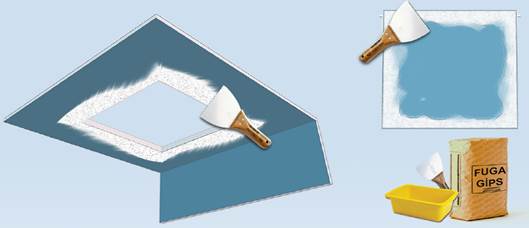

3 - Paint Process
APPLİCATION
EXAMPLE:

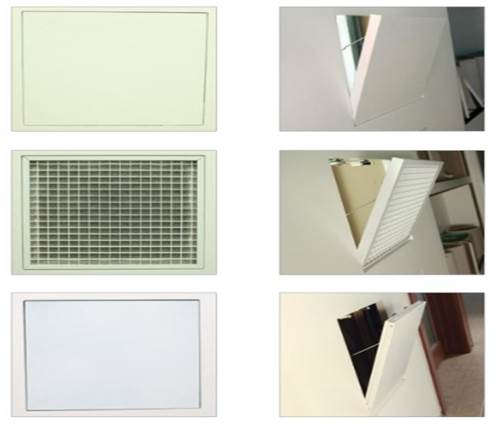

Metallized Touch-Operated Manhole
Covers:
Honeycomb touch operated manhole
covers:
Switch
Hinged Touch-Operated Intervention Cover

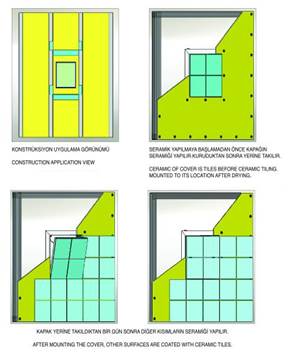

Details of
Application of Touch-Operated Swich intervention covers on Ceramic:
Spring
and Touch Manhole Cover (vertically and horizontally Opening)

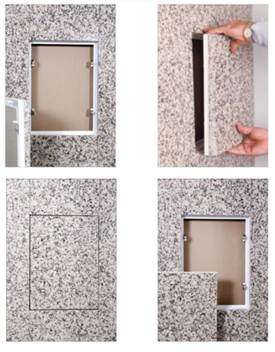

Zero
Consturiction Touch-Operated Intervention Covers
Metal
couted zero construction manhole cover
Top
Mounted intervention covers

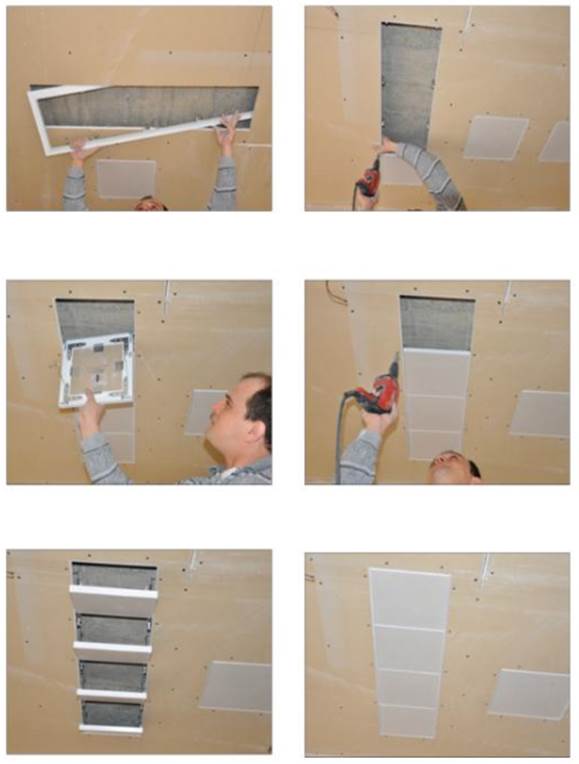

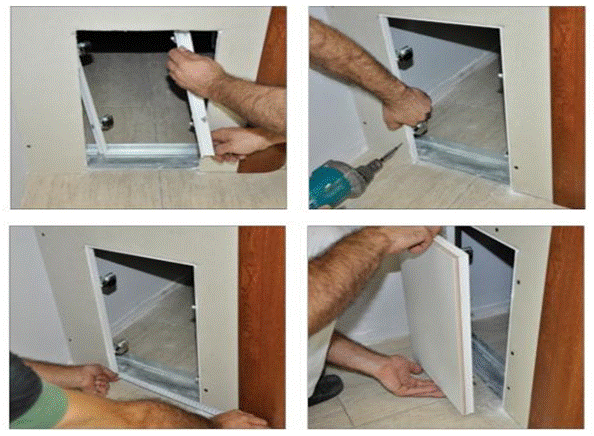

Assembly of
touch-operated swich hinged multi opening covers

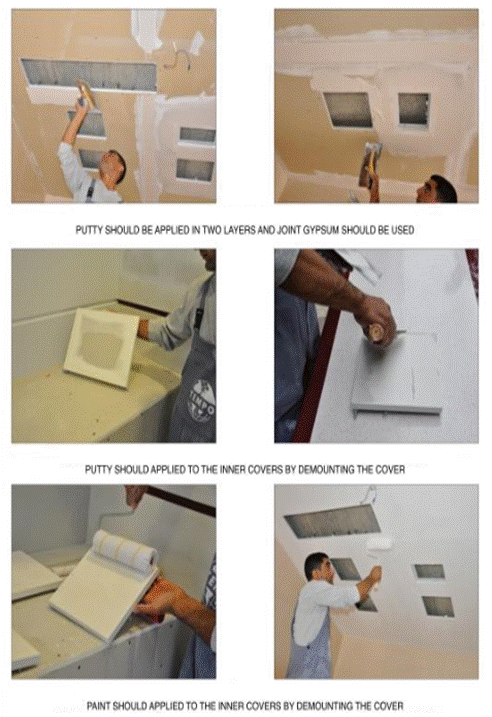

Putty
and paint application on touch-operated intervention covers
* Tüm Ürün Resimleri Tempo İnşaat
İzniyle yayınlanmıştır.
ORDER
CODE:
|
TMK |
O |
C |
D |
RAL9010 |
00 |
W
400X400 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
W:
Neck Size |
|||||
|
|
|
C:
Frame Size |
|||||
|
O : Touch operation |
00: Without
accessories |
||||||
|
S : Sipringy |
CE : Cover Over Ceramic Coated |
||||||
|
U: Universal T : Top Mounting |
|
||||||
|
C : Construction Frame |
|
||||||
|
KO: without Construction Frame |
|||||||
|
D: Cover Plate drywall Coated |
00:
without coating |
||||||
|
E: Cover Plate Egg Creat Coated |
EL:
Anodic Aluminium |
||||||
|
G: Cover Plate Galvanize sheet Coated |
RAL----:
Powder Coated RAL |
||||||
