TRANSFER GRILLE

DESCRIPTION:

TRM : Transfer grille with “V” shape vanes, 22mm frame and adjustable counter frame.

MATERIAL :

Specially extruded from 6063 aluminium profile.

FUNCTION :

The TRM Series grilles, used transfer air due to the pressure differentaial between environments and can be installed on walls or doors with thickness between 30mm and 69mm

FINISHING :

·         Standard finishing is natural anodized. Electrostatic powder coating is optional.

·         Standard colours are RAL 9010 and RAL 9016 . Other colours are available with enamel paint.

INSTALLATION :

·         System with screws is standard.

.

STANDARD SIZES (mm):

W : 100-150-200-250-300-350-400-450-500-550-600-650-700-750-800-900-1000-1100-1200

H  : 100-150-200-250-300-350-400-450-500-550-600

* Any combination of these sizes

FRAME TYPES:

DRAWINGS :

TRANSFER GRILLES QUICK SELECTION TABLE

Qv (m3/h): Flow Rate  , Ak (m2) : Effective area , Vk (m/s) : Exit Speed ,  Pt (Pa) : Pressure Loss

* All dimensions are in mm.

* WxH : Neck Size

* W: Lenght  H: Height

TRANSFER GRILLE SELECTED

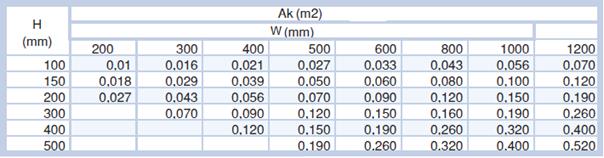

TRANSFER GRILLE EFFECTIVE AREA

Table-1

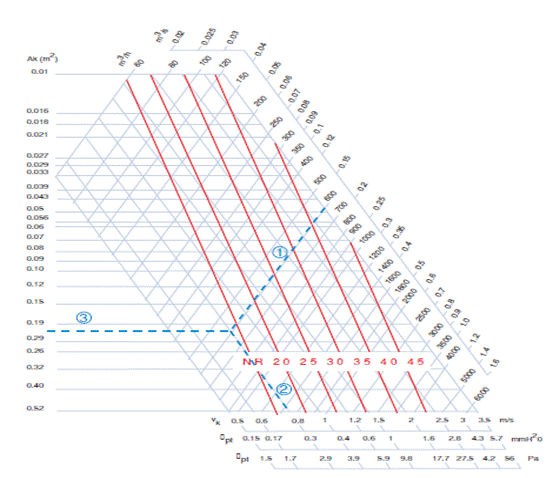

SELECTED DIAGRAMI

Diagram-1

SAMPLE GRILLE SELECTION

MOUNTING DETAILS

Screw Mounting Details

TRANSFER GRILLE ORDER CODE
