DESCRIPTION:
DM : Double deflection Supply Grilles, with adjustable horizontal and
vertical blades
DM-Y : Double deflection Supply Grilles, with adjustable horizontal and
vertical blades, horizontal blades in front.
DM-D : Double deflection Supply Grilles, with adjustable horizontal and
vertical blades, vertical blades in front.
CONSTRUCTION :
Exruded Aluminium Frame and Blades
APPLICATION :
The grilles type DM is used for the supply of cooled and heated air in
facilities such as offices, shopping centres workshop… The grille can be used
for wall or exposed duct mounting . The horizontal and vertical blades can be
adjusted manually and individually to obtain an optical air distribution
suitable for room 3±0,5m.
FINISHING :
·
Standard finishing is natural
anodized. Electrostatic powder coating is optional.
·
Standard colours are RAL 9010 and
RAL 9016 . Other colours are available with enamel paint.

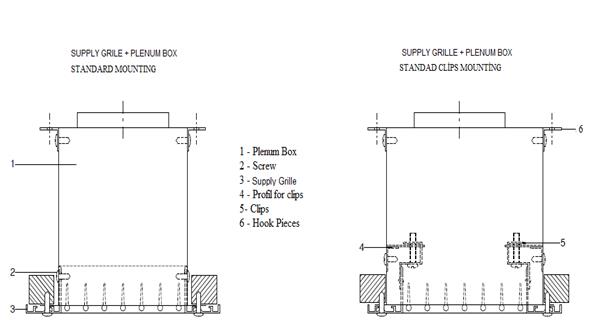

INSTALLATION :
·
System with screws is standard.
·
System with clips and plate
spring is used if no hole is requested on the frame.
ACCESSORIES:
·
If desired, it is possible to add
a damper to adjust the amount of air to be collected.
PKD: Parallel Blade Damper
ZKD: Opposite Blade Damper
·
PK: Plenum Box
·
KK: Subframe
STANDARD SIZES (mm) :
W : 200-250-300-350-400-450-500-550-600-650-700-750-800-900-1000-1100-1200
H :
75-100-150-200-300-400-500
* Any combination of these
sizes

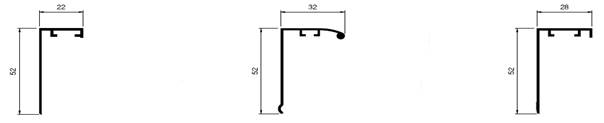

FRAME TYPES :
22mm frame
32mm frame
28mm frame

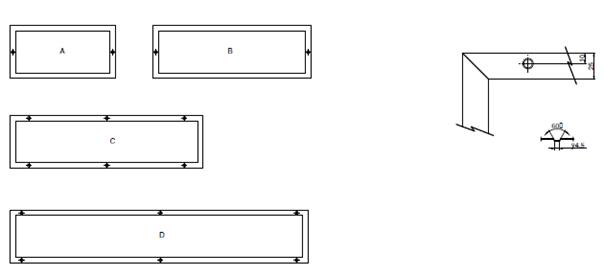

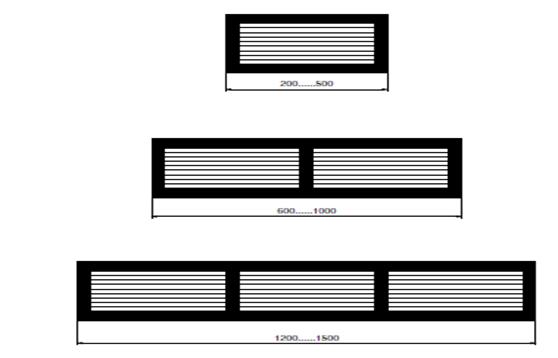

DRAWINGS :
SUPPLY

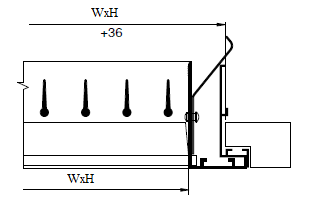

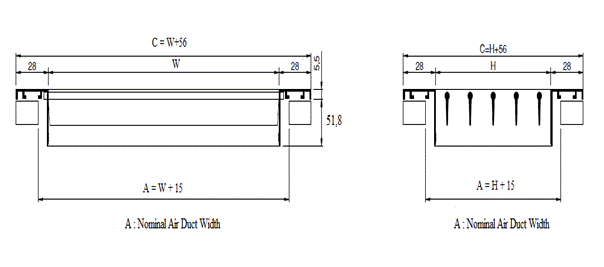

GRILLES DIMENSIONS :
SUPPLY

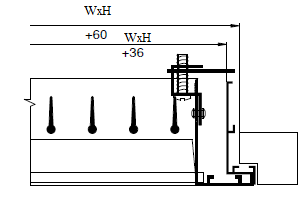

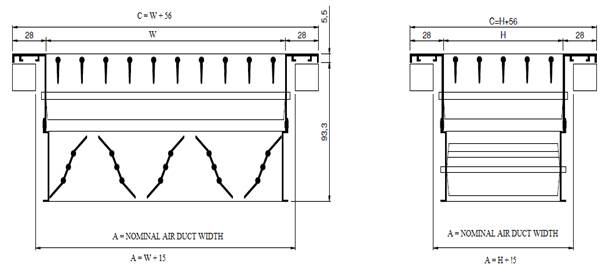

GRILLES WITH PARALLEL BLADE DAMPER DIMENSIONS
DM-PKD
SUPPLY
GRILLES WITH OPPOSITE BLADE DAMPER DIMENSIONS
DM-ZKD

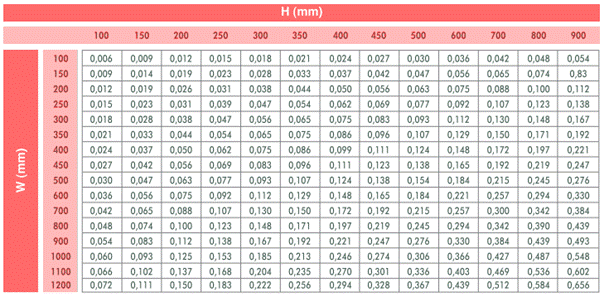

SUPPLY GRILLES SELECTION TABLE -
1
|
NECK
SIZE |
EFFECTIVE
AREA m2 |
AIR
VELOCITY m/s |
|||||||||||||||
|
1,5 |
m/s |
2,0 |
m/s |
2,5 |
m/s |
3,0 |
m/s |
4,0 |
m/s |
5,0 |
m/s |
6,0 |
m/s |
7,0 |
m/s |
||
|
100x100 |
0,006 |
32,40 |
m3/h |
43,20 |
m3/h |
54,00 |
m3/h |
64,80 |
m3/h |
86,40 |
m3/h |
108,00 |
m3/h |
129,60 |
m3/h |
151,20 |
m3/h |
|
100x150 |
0,009 |
48,60 |
m3/h |
64,80 |
m3/h |
81,00 |
m3/h |
97,20 |
m3/h |
129,60 |
m3/h |
162,00 |
m3/h |
194,40 |
m3/h |
226,80 |
m3/h |
|
100x200 |
0,012 |
64,80 |
m3/h |
86,40 |
m3/h |
108,00 |
m3/h |
129,60 |
m3/h |
172,80 |
m3/h |
216,00 |
m3/h |
259,20 |
m3/h |
302,40 |
m3/h |
|
100x250 |
0,015 |
81,00 |
m3/h |
108,00 |
m3/h |
135,00 |
m3/h |
162,00 |
m3/h |
216,00 |
m3/h |
270,00 |
m3/h |
324,00 |
m3/h |
378,00 |
m3/h |
|
100x300 |
0,018 |
97,20 |
m3/h |
129,60 |
m3/h |
162,00 |
m3/h |
194,40 |
m3/h |
259,20 |
m3/h |
324,00 |
m3/h |
388,80 |
m3/h |
453,60 |
m3/h |
|
150x150 |
0,014 |
75,60 |
m3/h |
100,80 |
m3/h |
126,00 |
m3/h |
151,20 |
m3/h |
201,60 |
m3/h |
252,00 |
m3/h |
302,40 |
m3/h |
352,80 |
m3/h |
|
150x200 |
0,019 |
102,60 |
m3/h |
136,80 |
m3/h |
171,00 |
m3/h |
205,20 |
m3/h |
273,60 |
m3/h |
342,00 |
m3/h |
410,40 |
m3/h |
478,80 |
m3/h |
|
150x250 |
0,023 |
124,20 |
m3/h |
165,60 |
m3/h |
207,00 |
m3/h |
248,40 |
m3/h |
331,20 |
m3/h |
414,00 |
m3/h |
496,80 |
m3/h |
579,60 |
m3/h |
|
150x300 |
0,028 |
151,20 |
m3/h |
201,60 |
m3/h |
252,00 |
m3/h |
302,40 |
m3/h |
403,20 |
m3/h |
504,00 |
m3/h |
604,80 |
m3/h |
705,60 |
m3/h |
|
150x350 |
0,033 |
178,20 |
m3/h |
237,60 |
m3/h |
297,00 |
m3/h |
356,40 |
m3/h |
475,20 |
m3/h |
594,00 |
m3/h |
712,80 |
m3/h |
831,60 |
m3/h |
|
150x400 |
0,037 |
199,80 |
m3/h |
266,40 |
m3/h |
333,00 |
m3/h |
399,60 |
m3/h |
532,80 |
m3/h |
666,00 |
m3/h |
799,20 |
m3/h |
932,40 |
m3/h |
|
150x450 |
0,042 |
226,80 |
m3/h |
302,40 |
m3/h |
378,00 |
m3/h |
453,60 |
m3/h |
604,80 |
m3/h |
756,00 |
m3/h |
907,20 |
m3/h |
1058,40 |
m3/h |
|
150x500 |
0,047 |
253,80 |
m3/h |
338,40 |
m3/h |
423,00 |
m3/h |
507,60 |
m3/h |
676,80 |
m3/h |
846,00 |
m3/h |
1015,20 |
m3/h |
1184,40 |
m3/h |
|
150x600 |
0,056 |
302,40 |
m3/h |
403,20 |
m3/h |
504,00 |
m3/h |
604,80 |
m3/h |
806,40 |
m3/h |
1008,00 |
m3/h |
1209,60 |
m3/h |
1411,20 |
m3/h |
|
200x200 |
0,026 |
140,40 |
m3/h |
187,20 |
m3/h |
234,00 |
m3/h |
280,80 |
m3/h |
374,40 |
m3/h |
468,00 |
m3/h |
561,60 |
m3/h |
655,20 |
m3/h |
|
200x250 |
0,031 |
167,40 |
m3/h |
223,20 |
m3/h |
279,00 |
m3/h |
334,80 |
m3/h |
446,40 |
m3/h |
558,00 |
m3/h |
669,60 |
m3/h |
781,20 |
m3/h |
|
200x300 |
0,038 |
205,20 |
m3/h |
273,60 |
m3/h |
342,00 |
m3/h |
410,40 |
m3/h |
547,20 |
m3/h |
684,00 |
m3/h |
820,80 |
m3/h |
957,60 |
m3/h |
|
200x350 |
0,044 |
237,60 |
m3/h |
316,80 |
m3/h |
396,00 |
m3/h |
475,20 |
m3/h |
633,60 |
m3/h |
792,00 |
m3/h |
950,40 |
m3/h |
1108,80 |
m3/h |
|
200x400 |
0,050 |
270,00 |
m3/h |
360,00 |
m3/h |
450,00 |
m3/h |
540,00 |
m3/h |
720,00 |
m3/h |
900,00 |
m3/h |
1080,00 |
m3/h |
1260,00 |
m3/h |
|
200x450 |
0,056 |
302,40 |
m3/h |
403,20 |
m3/h |
504,00 |
m3/h |
604,80 |
m3/h |
806,40 |
m3/h |
1008,00 |
m3/h |
1209,60 |
m3/h |
1411,20 |
m3/h |
|
200x500 |
0,063 |
340,20 |
m3/h |
453,60 |
m3/h |
567,00 |
m3/h |
680,40 |
m3/h |
907,20 |
m3/h |
1134,00 |
m3/h |
1360,80 |
m3/h |
1587,60 |
m3/h |
|
200x600 |
0,075 |
405,00 |
m3/h |
540,00 |
m3/h |
675,00 |
m3/h |
810,00 |
m3/h |
1080,00 |
m3/h |
1350,00 |
m3/h |
1620,00 |
m3/h |
1890,00 |
m3/h |
|
200x700 |
0,088 |
475,20 |
m3/h |
633,60 |
m3/h |
792,00 |
m3/h |
950,40 |
m3/h |
1267,20 |
m3/h |
1584,00 |
m3/h |
1900,80 |
m3/h |
2217,60 |
m3/h |
|
200x800 |
0,100 |
540,00 |
m3/h |
720,00 |
m3/h |
900,00 |
m3/h |
1080,00 |
m3/h |
1440,00 |
m3/h |
1800,00 |
m3/h |
2160,00 |
m3/h |
2520,00 |
m3/h |
|
200x900 |
0,112 |
604,80 |
m3/h |
806,40 |
m3/h |
1008,00 |
m3/h |
1209,60 |
m3/h |
1612,80 |
m3/h |
2016,00 |
m3/h |
2419,20 |
m3/h |
2822,40 |
m3/h |
|
250x250 |
0,039 |
210,60 |
m3/h |
280,80 |
m3/h |
351,00 |
m3/h |
421,20 |
m3/h |
561,60 |
m3/h |
702,00 |
m3/h |
842,40 |
m3/h |
982,80 |
m3/h |
|
250x300 |
0,047 |
253,80 |
m3/h |
338,40 |
m3/h |
423,00 |
m3/h |
507,60 |
m3/h |
676,80 |
m3/h |
846,00 |
m3/h |
1015,20 |
m3/h |
1184,40 |
m3/h |
|
250x350 |
0,054 |
291,60 |
m3/h |
388,80 |
m3/h |
486,00 |
m3/h |
583,20 |
m3/h |
777,60 |
m3/h |
972,00 |
m3/h |
1166,40 |
m3/h |
1360,80 |
m3/h |
|
250x400 |
0,062 |
334,80 |
m3/h |
446,40 |
m3/h |
558,00 |
m3/h |
669,60 |
m3/h |
892,80 |
m3/h |
1116,00 |
m3/h |
1339,20 |
m3/h |
1562,40 |
m3/h |
|
250x450 |
0,069 |
372,60 |
m3/h |
496,80 |
m3/h |
621,00 |
m3/h |
745,20 |
m3/h |
993,60 |
m3/h |
1242,00 |
m3/h |
1490,40 |
m3/h |
1738,80 |
m3/h |
|
250x500 |
0,077 |
415,80 |
m3/h |
554,40 |
m3/h |
693,00 |
m3/h |
831,60 |
m3/h |
1108,80 |
m3/h |
1386,00 |
m3/h |
1663,20 |
m3/h |
1940,40 |
m3/h |
|
250x600 |
0,092 |
496,80 |
m3/h |
662,40 |
m3/h |
828,00 |
m3/h |
993,60 |
m3/h |
1324,80 |
m3/h |
1656,00 |
m3/h |
1987,20 |
m3/h |
2318,40 |
m3/h |
|
250x700 |
0,107 |
577,80 |
m3/h |
770,40 |
m3/h |
963,00 |
m3/h |
1155,60 |
m3/h |
1540,80 |
m3/h |
1926,00 |
m3/h |
2311,20 |
m3/h |
2696,40 |
m3/h |
|
250x800 |
0,123 |
664,20 |
m3/h |
885,60 |
m3/h |
1107,00 |
m3/h |
1328,40 |
m3/h |
1771,20 |
m3/h |
2214,00 |
m3/h |
2656,80 |
m3/h |
3099,60 |
m3/h |
|
250x900 |
0,138 |
745,20 |
m3/h |
993,60 |
m3/h |
1242,00 |
m3/h |
1490,40 |
m3/h |
1987,20 |
m3/h |
2484,00 |
m3/h |
2980,80 |
m3/h |
3477,60 |
m3/h |
|
250x1000 |
0,153 |
826,20 |
m3/h |
1101,60 |
m3/h |
1377,00 |
m3/h |
1652,40 |
m3/h |
2203,20 |
m3/h |
2754,00 |
m3/h |
3304,80 |
m3/h |
3855,60 |
m3/h |
|
300x300 |
0,056 |
302,40 |
m3/h |
403,20 |
m3/h |
504,00 |
m3/h |
604,80 |
m3/h |
806,40 |
m3/h |
1008,00 |
m3/h |
1209,60 |
m3/h |
1411,20 |
m3/h |
|
300x350 |
0,065 |
351,00 |
m3/h |
468,00 |
m3/h |
585,00 |
m3/h |
702,00 |
m3/h |
936,00 |
m3/h |
1170,00 |
m3/h |
1404,00 |
m3/h |
1638,00 |
m3/h |
|
300x400 |
0,075 |
405,00 |
m3/h |
540,00 |
m3/h |
675,00 |
m3/h |
810,00 |
m3/h |
1080,00 |
m3/h |
1350,00 |
m3/h |
1620,00 |
m3/h |
1890,00 |
m3/h |
|
300x450 |
0,083 |
448,20 |
m3/h |
597,60 |
m3/h |
747,00 |
m3/h |
896,40 |
m3/h |
1195,20 |
m3/h |
1494,00 |
m3/h |
1792,80 |
m3/h |
2091,60 |
m3/h |
|
300x500 |
0,093 |
502,20 |
m3/h |
669,60 |
m3/h |
837,00 |
m3/h |
1004,40 |
m3/h |
1339,20 |
m3/h |
1674,00 |
m3/h |
2008,80 |
m3/h |
2343,60 |
m3/h |
|
300x600 |
0,112 |
604,80 |
m3/h |
806,40 |
m3/h |
1008,00 |
m3/h |
1209,60 |
m3/h |
1612,80 |
m3/h |
2016,00 |
m3/h |
2419,20 |
m3/h |
2822,40 |
m3/h |
SUPPLY GRILLES SELECTION TABLE -
2
|
NECK
SIZE |
EFFECTIVE
AREA |
AIR
VELOCITY m/s |
|||||||||||||||
|
1,5 |
m/s |
2,0 |
m/s |
2,5 |
m/s |
3,0 |
m/s |
4,0 |
m/s |
5,0 |
m/s |
6,0 |
m/s |
7,0 |
m/s |
||
|
300x700 |
0,130 |
702,00 |
m3/h |
936,00 |
m3/h |
1170,00 |
m3/h |
1404,00 |
m3/h |
1872,00 |
m3/h |
2340,00 |
m3/h |
2808,00 |
m3/h |
3276,00 |
m3/h |
|
300x800 |
0,148 |
799,20 |
m3/h |
1065,60 |
m3/h |
1332,00 |
m3/h |
1598,40 |
m3/h |
2131,20 |
m3/h |
2664,00 |
m3/h |
3196,80 |
m3/h |
3729,60 |
m3/h |
|
300x900 |
0,167 |
901,80 |
m3/h |
1202,40 |
m3/h |
1503,00 |
m3/h |
1803,60 |
m3/h |
2404,80 |
m3/h |
3006,00 |
m3/h |
3607,20 |
m3/h |
4208,40 |
m3/h |
|
300x1000 |
0,185 |
999,00 |
m3/h |
1332,00 |
m3/h |
1665,00 |
m3/h |
1998,00 |
m3/h |
2664,00 |
m3/h |
3330,00 |
m3/h |
3996,00 |
m3/h |
4662,00 |
m3/h |
|
350x350 |
0,075 |
405,00 |
m3/h |
540,00 |
m3/h |
675,00 |
m3/h |
810,00 |
m3/h |
1080,00 |
m3/h |
1350,00 |
m3/h |
1620,00 |
m3/h |
1890,00 |
m3/h |
|
350x400 |
0,086 |
464,40 |
m3/h |
619,20 |
m3/h |
774,00 |
m3/h |
928,80 |
m3/h |
1238,40 |
m3/h |
1548,00 |
m3/h |
1857,60 |
m3/h |
2167,20 |
m3/h |
|
350x450 |
0,096 |
518,40 |
m3/h |
691,20 |
m3/h |
864,00 |
m3/h |
1036,80 |
m3/h |
1382,40 |
m3/h |
1728,00 |
m3/h |
2073,60 |
m3/h |
2419,20 |
m3/h |
|
350x500 |
0,107 |
577,80 |
m3/h |
770,40 |
m3/h |
963,00 |
m3/h |
1155,60 |
m3/h |
1540,80 |
m3/h |
1926,00 |
m3/h |
2311,20 |
m3/h |
2696,40 |
m3/h |
|
350x600 |
0,129 |
696,60 |
m3/h |
928,80 |
m3/h |
1161,00 |
m3/h |
1393,20 |
m3/h |
1857,60 |
m3/h |
2322,00 |
m3/h |
2786,40 |
m3/h |
3250,80 |
m3/h |
|
350x700 |
0,150 |
810,00 |
m3/h |
1080,00 |
m3/h |
1350,00 |
m3/h |
1620,00 |
m3/h |
2160,00 |
m3/h |
2700,00 |
m3/h |
3240,00 |
m3/h |
3780,00 |
m3/h |
|
350x800 |
0,171 |
923,40 |
m3/h |
1231,20 |
m3/h |
1539,00 |
m3/h |
1846,80 |
m3/h |
2462,40 |
m3/h |
3078,00 |
m3/h |
3693,60 |
m3/h |
4309,20 |
m3/h |
|
350x900 |
0,192 |
1036,80 |
m3/h |
1382,40 |
m3/h |
1728,00 |
m3/h |
2073,60 |
m3/h |
2764,80 |
m3/h |
3456,00 |
m3/h |
4147,20 |
m3/h |
4838,40 |
m3/h |
|
350x1000 |
0,213 |
1150,20 |
m3/h |
1533,60 |
m3/h |
1917,00 |
m3/h |
2300,40 |
m3/h |
3067,20 |
m3/h |
3834,00 |
m3/h |
4600,80 |
m3/h |
5367,60 |
m3/h |
|
400x400 |
0,099 |
534,60 |
m3/h |
712,80 |
m3/h |
891,00 |
m3/h |
1069,20 |
m3/h |
1425,60 |
m3/h |
1782,00 |
m3/h |
2138,40 |
m3/h |
2494,80 |
m3/h |
|
400x450 |
0,111 |
599,40 |
m3/h |
799,20 |
m3/h |
999,00 |
m3/h |
1198,80 |
m3/h |
1598,40 |
m3/h |
1998,00 |
m3/h |
2397,60 |
m3/h |
2797,20 |
m3/h |
|
400x500 |
0,124 |
669,60 |
m3/h |
892,80 |
m3/h |
1116,00 |
m3/h |
1339,20 |
m3/h |
1785,60 |
m3/h |
2232,00 |
m3/h |
2678,40 |
m3/h |
3124,80 |
m3/h |
|
400x600 |
0,148 |
799,20 |
m3/h |
1065,60 |
m3/h |
1332,00 |
m3/h |
1598,40 |
m3/h |
2131,20 |
m3/h |
2664,00 |
m3/h |
3196,80 |
m3/h |
3729,60 |
m3/h |
|
400x700 |
0,172 |
928,80 |
m3/h |
1238,40 |
m3/h |
1548,00 |
m3/h |
1857,60 |
m3/h |
2476,80 |
m3/h |
3096,00 |
m3/h |
3715,20 |
m3/h |
4334,40 |
m3/h |
|
400x800 |
0,197 |
1063,80 |
m3/h |
1418,40 |
m3/h |
1773,00 |
m3/h |
2127,60 |
m3/h |
2836,80 |
m3/h |
3546,00 |
m3/h |
4255,20 |
m3/h |
4964,40 |
m3/h |
|
400x900 |
0,221 |
1193,40 |
m3/h |
1591,20 |
m3/h |
1989,00 |
m3/h |
2386,80 |
m3/h |
3182,40 |
m3/h |
3978,00 |
m3/h |
4773,60 |
m3/h |
5569,20 |
m3/h |
|
400x1000 |
0,246 |
1328,40 |
m3/h |
1771,20 |
m3/h |
2214,00 |
m3/h |
2656,80 |
m3/h |
3542,40 |
m3/h |
4428,00 |
m3/h |
5313,60 |
m3/h |
6199,20 |
m3/h |
|
500x500 |
0,154 |
831,60 |
m3/h |
1108,80 |
m3/h |
1386,00 |
m3/h |
1663,20 |
m3/h |
2217,60 |
m3/h |
2772,00 |
m3/h |
3326,40 |
m3/h |
3880,80 |
m3/h |
|
500x600 |
0,184 |
993,60 |
m3/h |
1324,80 |
m3/h |
1656,00 |
m3/h |
1987,20 |
m3/h |
2649,60 |
m3/h |
3312,00 |
m3/h |
3974,40 |
m3/h |
4636,80 |
m3/h |
|
500x700 |
0,215 |
1161,00 |
m3/h |
1548,00 |
m3/h |
1935,00 |
m3/h |
2322,00 |
m3/h |
3096,00 |
m3/h |
3870,00 |
m3/h |
4644,00 |
m3/h |
5418,00 |
m3/h |
|
500x800 |
0,245 |
1323,00 |
m3/h |
1764,00 |
m3/h |
2205,00 |
m3/h |
2646,00 |
m3/h |
3528,00 |
m3/h |
4410,00 |
m3/h |
5292,00 |
m3/h |
6174,00 |
m3/h |
|
500x900 |
0,276 |
1490,40 |
m3/h |
1987,20 |
m3/h |
2484,00 |
m3/h |
2980,80 |
m3/h |
3974,40 |
m3/h |
4968,00 |
m3/h |
5961,60 |
m3/h |
6955,20 |
m3/h |
|
500x1000 |
0,306 |
1652,40 |
m3/h |
2203,20 |
m3/h |
2754,00 |
m3/h |
3304,80 |
m3/h |
4406,40 |
m3/h |
5508,00 |
m3/h |
6609,60 |
m3/h |
7711,20 |
m3/h |
|
600x600 |
0,221 |
1193,40 |
m3/h |
1591,20 |
m3/h |
1989,00 |
m3/h |
2386,80 |
m3/h |
3182,40 |
m3/h |
3978,00 |
m3/h |
4773,60 |
m3/h |
5569,20 |
m3/h |
|
600x700 |
0,257 |
1387,80 |
m3/h |
1850,40 |
m3/h |
2313,00 |
m3/h |
2775,60 |
m3/h |
3700,80 |
m3/h |
4626,00 |
m3/h |
5551,20 |
m3/h |
6476,40 |
m3/h |
|
600x800 |
0,294 |
1587,60 |
m3/h |
2116,80 |
m3/h |
2646,00 |
m3/h |
3175,20 |
m3/h |
4233,60 |
m3/h |
5292,00 |
m3/h |
6350,40 |
m3/h |
7408,80 |
m3/h |
|
600x900 |
0,330 |
1782,00 |
m3/h |
2376,00 |
m3/h |
2970,00 |
m3/h |
3564,00 |
m3/h |
4752,00 |
m3/h |
5940,00 |
m3/h |
7128,00 |
m3/h |
8316,00 |
m3/h |
|
600x1000 |
0,366 |
1976,40 |
m3/h |
2635,20 |
m3/h |
3294,00 |
m3/h |
3952,80 |
m3/h |
5270,40 |
m3/h |
6588,00 |
m3/h |
7905,60 |
m3/h |
9223,20 |
m3/h |
|
600x1200 |
0,439 |
2370,60 |
m3/h |
3160,80 |
m3/h |
3951,00 |
m3/h |
4741,20 |
m3/h |
6321,60 |
m3/h |
7902,00 |
m3/h |
9482,40 |
m3/h |
11062,80 |
m3/h |
|
800x800 |
0,390 |
2106,00 |
m3/h |
2808,00 |
m3/h |
3510,00 |
m3/h |
4212,00 |
m3/h |
5616,00 |
m3/h |
7020,00 |
m3/h |
8424,00 |
m3/h |
9828,00 |
m3/h |
|
800x900 |
0,439 |
2370,60 |
m3/h |
3160,80 |
m3/h |
3951,00 |
m3/h |
4741,20 |
m3/h |
6321,60 |
m3/h |
7902,00 |
m3/h |
9482,40 |
m3/h |
11062,80 |
m3/h |
|
800x1000 |
0,487 |
2629,80 |
m3/h |
3506,40 |
m3/h |
4383,00 |
m3/h |
5259,60 |
m3/h |
7012,80 |
m3/h |
8766,00 |
m3/h |
10519,20 |
m3/h |
12272,40 |
m3/h |
|
800x1100 |
0,536 |
2894,40 |
m3/h |
3859,20 |
m3/h |
4824,00 |
m3/h |
5788,80 |
m3/h |
7718,40 |
m3/h |
9648,00 |
m3/h |
11577,60 |
m3/h |
13507,20 |
m3/h |
|
800x1200 |
0,584 |
3153,60 |
m3/h |
4204,80 |
m3/h |
5256,00 |
m3/h |
6307,20 |
m3/h |
8409,60 |
m3/h |
10512,00 |
m3/h |
12614,40 |
m3/h |
14716,80 |
m3/h |
|
900x900 |
0,493 |
2662,20 |
m3/h |
3549,60 |
m3/h |
4437,00 |
m3/h |
5324,40 |
m3/h |
7099,20 |
m3/h |
8874,00 |
m3/h |
10648,80 |
m3/h |
12423,60 |
m3/h |
|
900x1000 |
0,548 |
2959,20 |
m3/h |
3945,60 |
m3/h |
4932,00 |
m3/h |
5918,40 |
m3/h |
7891,20 |
m3/h |
9864,00 |
m3/h |
11836,80 |
m3/h |
13809,60 |
m3/h |
|
900x1100 |
0,602 |
3250,80 |
m3/h |
4334,40 |
m3/h |
5418,00 |
m3/h |
6501,60 |
m3/h |
8668,80 |
m3/h |
10836,00 |
m3/h |
13003,20 |
m3/h |
15170,40 |
m3/h |
|
900x1200 |
0,656 |
3542,40 |
m3/h |
4723,20 |
m3/h |
5904,00 |
m3/h |
7084,80 |
m3/h |
9446,40 |
m3/h |
11808,00 |
m3/h |
14169,60 |
m3/h |
16531,20 |
m3/h |
|
1000x1000 |
0,602 |
3250,80 |
m3/h |
4334,40 |
m3/h |
5418,00 |
m3/h |
6501,60 |
m3/h |
8668,80 |
m3/h |
10836,00 |
m3/h |
13003,20 |
m3/h |
15170,40 |
m3/h |
GRILLE
SELECTION
1-
Determine the air volume according to the place and
number of the grilles.
2-
Select the velocity according to the used area.
3-
Determine the effective area from air volume and
velocity values.
4-
Find the size from effective area table.
DATA
DIAGRAMS
EFFECTIVE AREA TABLE-1

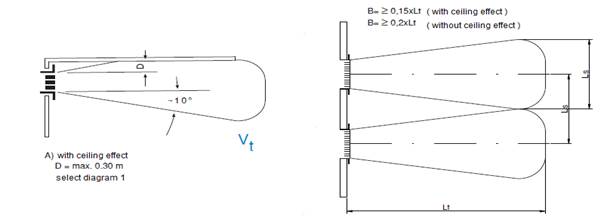

BLOWING
DISTANCE

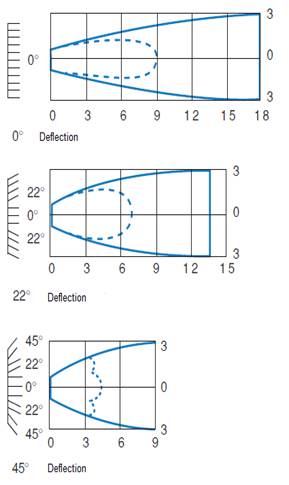

Deflection Blade Angles Ceiling
Effect
For different wing angles, correction table Vt (m/s) for correction table
|
Üfleme Açısı |
22º |
45º |
|
Lt |
x 0,77 |
x 0,55 |
|
Vk |
x 1,15 |
x 1,25 |
|
Pt |
x 1,3 |
x 1,6 |
|
NR |
+3 |
+5 |
|
Vt (m/s) |
0,25 |
0,375 |
0,5 |
0,625 |
|
|
Lt |
A |
x 1 |
x 0,67 |
x 0,5 |
x 0,4 |
|
B |
x 0,7 |
x 0,47 |
x 0,35 |
x 0,28 |
|
Table -3
Table -2
SUPPLY

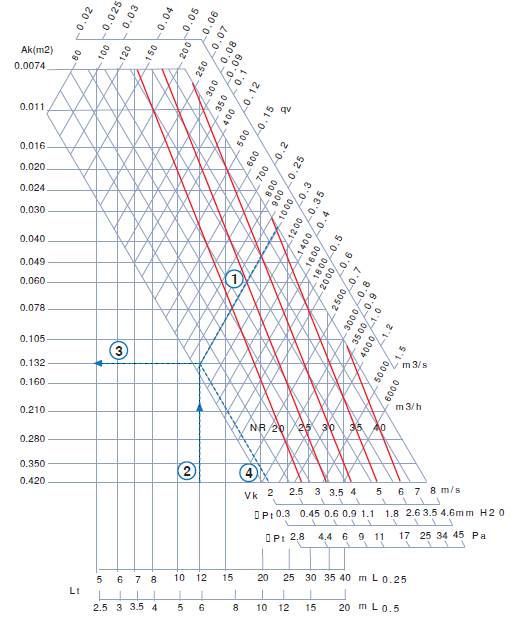

GRILLE SELECTION DIAGRAM
Diagram 1
Note:
1 - The values in the selection diagram are calculated
including the ceiling effect.
2 - The ceiling height is accepted as 3 ± 0,5m.
3 –
Air Damper is
calculated as 100% open.

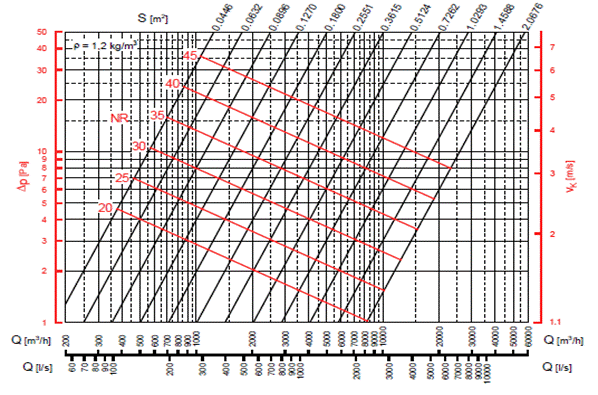

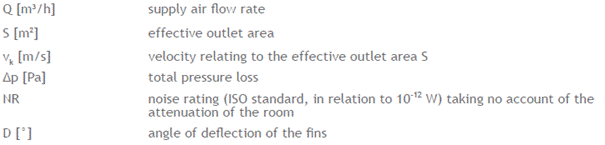

PRESSURE LOSS AND NOISE LEVELS

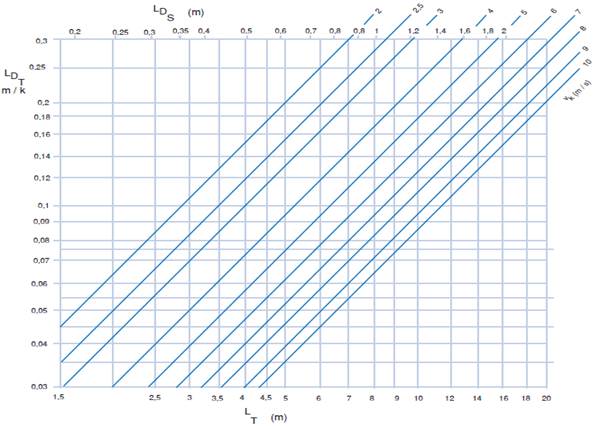

AIR FALL DIAGRAM
Diagram 2
AIR FALL
Description
:
The
total air drop is the vertical distance between the air drop center and the
lowest point to the air drop Vt (m / s). Total air loss consists of two
components.
Ld = Lds + Ldt
Diagram -3
TL / TZ : Temperature Change
|
TL (K) : Maximum temperature difference between room temperature and air
temperature |
|
Tz (K) : Maximum
temperature difference between room temperature and distributor air
temperature |
|
I : induction |
Sample Grille Selection:
Qv
= 1000 m3/h , Room Length: 12 m, Vt :
0,25
Result
:
Diagram
1 for ; Ak : 0,132m2 (3) , WxH : 1200x150mm , Pt : 2,8 Pa , Lt : 12m , Vk: 2,1m/s (4) Selection
MOUNTING
DETAILS
SCREW
MOUNTING HOLE PALACEMENT
|
W /L |
200 |
250 |
300 |
400 |
500 |
600 |
800 |
1000 |
1200 |
1500 |
|
100 |
A |
A |
A |
A |
A |
C |
C |
C |
D |
D |
|
150 |
|
A |
A |
A |
A |
C |
C |
C |
D |
D |
|
200 |
|
|
|
B |
B |
C |
C |
C |
D |
D |
|
300 |
|
|
|
|
B |
C |
C |
C |
D |
D |
SUPPORT PLACEMENT
SUPPLY
GRILLES PLENUM BOX MOUNTING DETAILS
1 – TOP
ENTRY PLENUM BOX MOUNTING DETAILS
2 - SID
ENTRY PLENUM BOX MOUNTING DETAILS
SUPPLY
GRILLE ORDER CODE
|
DM |
Y |
28 |
PKD |
FB9010 |
VD |
W
300X200 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
||
|
DM-Y: Horizantel Blade in Front |
|
|
W:
Neck Size |
||||
|
DM-D: Vertical Blade in Front |
|
|
C:
Frame Size |
||||
|
|
|||||||
|
|
00:
without Mounting |
||||||
|
22: Frame=22mm 28: Frame=28mm |
VD:
Screw Mounting |
||||||
|
32: Frame=32mm |
KL:
Clips Mounting |
||||||
|
|
ST: Spring
Mounting |
||||||
|
000: without Damper |
00:
without coating |
||||||
|
ZKD: Opposite Blade Damper |
EL:
Satin Aluminium |
||||||
|
PKD: ParalleL Blade Damper |
FB----:
Powder Coated RAL |
||||||
