DESCRIPTION:
YDK: In
shaft 1049ºC - 120 minutes, Out of shaft 1006ºC - 90 minutes
The shaft lid protects your electrical and mechanical installations on the
structure in a safe and decorative way. In the event of a possible fire, the
installation shafts allow the fire to move quickly to the upper zones by making
a chimney effect, preventing the use of the installation shaft cover and the
fires that occur in the neighborhood to reach the installation sites and fires
that may occur in the installation shafts.
MATERIAL:
The fixed
outer frame and the moving inner frame are made of aluminum material resistant
to bending and buckling. Fire Wicks Graphite, Drywall A1 boardex
APPLICATION:
YDK Series control flaps, the Fire Resistant Shaft Cover provide
all the functionality, as well as keeping the fire area at minimum level for 90
minutes and allowing people to escape to safe zones. Smoke and heat are two key
elements that cause damage to the fire, and the Shaft Cover does not allow
exposure to these elements.
FINISHING:
Standard colours are RAL 9010 and RAL 9016 for frame.
INSTALLATION:
The outer frame is applied as a standard by screwing on the gypsum board.
STANDARD SIZES (mm) :
W : 400-450-500-550-600-650-700-750-800 mm
H : 400-450-500-550-600-650-700-750-800-900-1000-1100-1200-1300-1400
mm
* Any combination of these
sizes
DRAWINGS:
a – Carrier Frame b
– Moving Frame c – Lock
and Key
d – Connectors e – Fire Wicks
f – Safety Chain

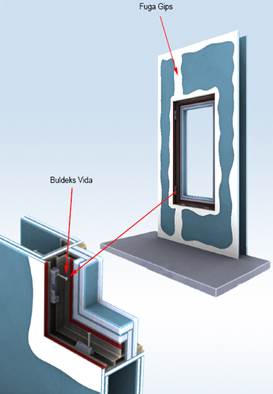

MOUNTING
DETAILS:
TRIANGLE
KEYED
KEYED

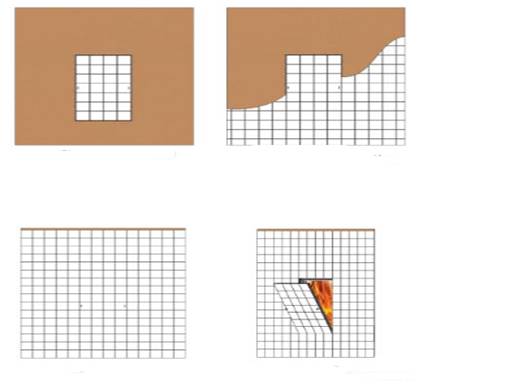

APPLICATION DETAILS IN DIFFERENT WALL TYPES
Concrete
Wall Application Detail
Ceramic
Application Detail

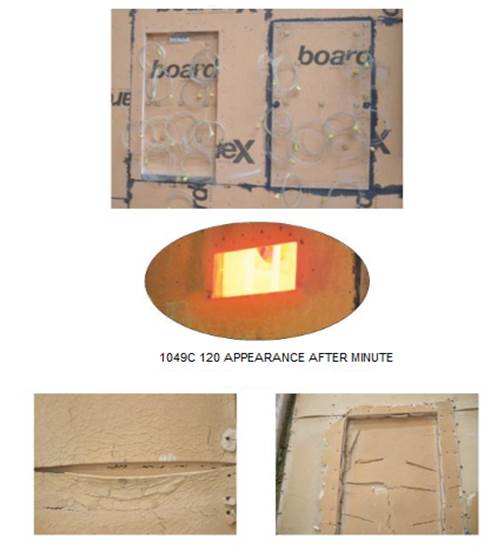

TEST
Passed the
Test Laboratory.
* Tüm Ürün Resimleri Tempo İnşaat
İzniyle yayınlanmıştır.
ORDER
CODE:
|
YDK |
UA |
C |
D |
RAL9010 |
00 |
W
400X400 |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
W:
Neck Size |
|||||
|
|
|
C:
Frame Size |
|||||
|
00: Without
accessories |
|||||||
|
UA: Triangle Keyed |
CE : Cover Over Ceramic Coated |
||||||
|
A: Keyed |
|
||||||
|
C : Construction Frame |
|
||||||
|
KO: without Construction Frame |
|||||||
|
D: Cover Plate drywall Coated |
00:
without coating |
||||||
|
E: Cover Plate Egg Creat Coated |
|||||||
|
G: Cover Plate Galvanize sheet Coated |
RAL----:
Powder Coated RAL |
||||||
